我们都知道ifconfig -a 可以列出所有网卡,但是怎么判读是千兆网卡还是百兆网卡呢?
ethtool <network interface> #查看支持的速率
若提示没有这个命令则安装
apt-get install ethtool
先列举出所有网卡信息
root@ubuntu:~# ifconfig
docker0: flags=4099<UP,BROADCAST,MULTICAST> mtu 1500
inet 172.17.0.1 netmask 255.255.0.0 broadcast 172.17.255.255
inet6 fe80::42:2aff:feef:8940 prefixlen 64 scopeid 0x20<link>
ether 02:42:2a:ef:89:40 txqueuelen 0 (以太网)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 18887 bytes 2080433 (2.0 MB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
enp2s0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 192.168.81.208 netmask 255.255.254.0 broadcast 192.168.81.255
inet6 fe80::c0b1:bc04:43a5:9eab prefixlen 64 scopeid 0x20<link>
ether f4:8e:38:ad:34:6d txqueuelen 1000 (以太网)
RX packets 14707617 bytes 2023491977 (2.0 GB)
RX errors 0 dropped 878402 overruns 0 frame 0
TX packets 14536172 bytes 10058264384 (10.0 GB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
enp3s0: flags=4099<UP,BROADCAST,MULTICAST> mtu 1500
ether 00:e0:4c:99:22:51 txqueuelen 1000 (以太网)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10<host>
loop txqueuelen 1000 (本地环回)
RX packets 3621152 bytes 2568673549 (2.5 GB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 3621152 bytes 2568673549 (2.5 GB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

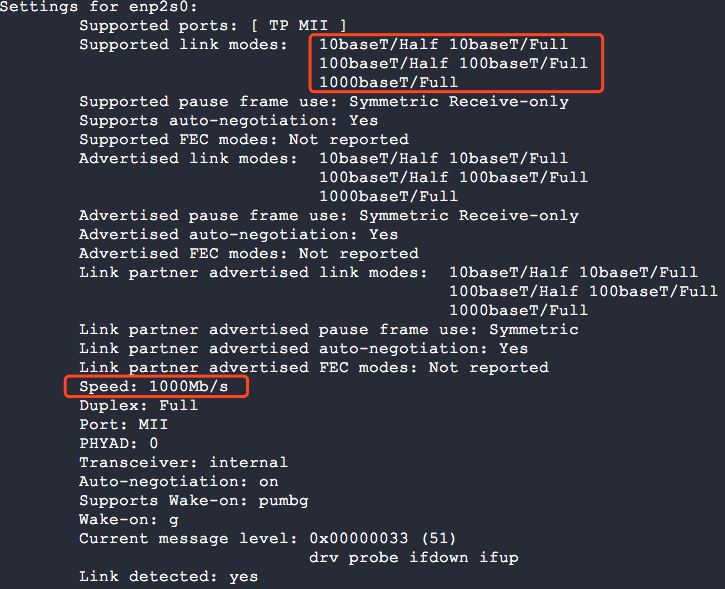

使用ethtool命令查看该网卡的支持速率
虽然spee是1000mb/s了,但是还不能代表这就是一块千兆网卡,网卡速率和网线,交换机端口速率都有关系,看到Auto-negotiation字段了吧,on表示开启
自动协商,插上网线后会两端会自动协商一个都支持的速率;
以前就知道yes 表示网卡插好网线了(亮了),反过来呢?是不是插好网线就是yes
不是这样的,插好网线,还要激活网卡(ifup ethx, 其实是二层up)才会yes;
mii-tool
, 查看连接状态和速率root@ubuntu:~# mii-tool enp2s0
enp2s0: negotiated 1000baseT-FD flow-control, link ok
root@ubuntu:~# mii-tool enp3s0
enp3s0: no link
问题来了,如果ethtool 和mii-tool查出来的速率不同呢?
曾经有个千兆网卡,二者查出的速率不同,多方查阅,终于在man mii-tool发现了结果
This program is obsolete. Valid media are only 100baseT4, 100baseTx-FD,100baseTx-HD, 10baseT-FD and 10baseT-HD ethernet cards. For replacement check ethtool.
如果你也遇到这个问题,不要犹豫,果断相信ethtool的结果吧。
